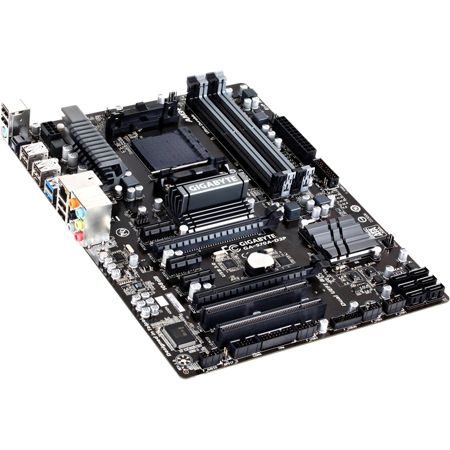

Gigabyte Ultra Durable 4 Classic GA-970A-D3P Desktop Motherboard - AMD 970 Chipset - Socket AM3+ Item # 137363
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
137363
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The 970A-D3P motherboard is designed to offer a stable, high-speed platform for delivering amazingly fast data transfer via the GIGABYTE 333 onboard acceleration technologies. Featuring the USB 3.0 controller, AMD 900 series motherboards allow users to take advantage of super fast USB transfer rates of up to 5 Gbps, delivering 10x faster data transfer compared to USB 2.0. Utilizing the industry's first Serial ATA Revision 3.0 solution via AMD SB950 chipset, GIGABYTE AMD 900 series motherboards offer native 6 ports of next generation high speed data storage devices support with data transfer speeds of up to 6 Gbps with RAID 0, 1, 5, 10. The AMD 900 series motherboards introduce a unique hardware design with lower resistance fuses for ensuring lower voltage drops and providing more stable and plentiful power delivery. USB ports also benefit from a 3x power boost for better power delivery to power hungry USB devices.
Product Details
| Item # | 137363 |
| Manufacturer # | GA970AD3P |
| Number of SATA Interfaces | 6 |
| Number of PS/2 Ports | 1 |
| Hardware Features | DualBIOS, Q-Flash, 4+1 Phase Power Design, 3x USB Power Boost, Intel Extreme Memory Profile (XMP) support, On/Off Charge, GIGABYTE 333 Onboard Acceleration, Ultra Durable 4 Classic, AMD CrossFireX technology support, ESD Protection |
| Power Supply Supported | ATX12V |
| Multi GPU Supported | CrossFireX |
| Memory Speed Supported | 2 GHz (O.C.); 1.87 GHz; 1.60 GHz; 1.33 GHz; 1.07 GHz |
| S/PDIF | Yes |
| Certifications & Standards | CE; FCC; BSMI; ACPI 2.0a |
| Compatible Processors | Opteron, Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Athlon II, Phenom II X4, Phenom II X6, FX |
| Number of Network (RJ-45) Ports | 1 |
| BIOS Type | AMI |
| Internal Interfaces | 1 x audio - header ¦ 1 x SPDIF out - header ¦ 6 x USB 2.0 - header ¦ 1 x serial - header ¦ 2 x USB 3.0 - header |
| Product Line | Ultra Durable 4 Classic |
| Audio Line In | Yes |
| Storage Interfaces | AMD SB950 : SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 / JBOD |
| Number of PCI Express x16 Slots | 2 |
| Total Processor Supported | 1 |
| Total Number of PCI Express Slots | 5 |
| 64-bit Processing | Yes |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz, 2000 MHz (O.C.) |
| Max Processors Qty | 1 |
| RAID Supported | Yes |
| brand name | Gigabyte |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, power supply fan tachometer |
| Audio Channels | 7.1 |
| Number of USB 2.0 Ports | 8 |
| PS/2 Port | Yes |
| Memory Form Factor | DIMM |
| Processor Socket | Socket AM3+ |
| Sound Controller Manufacturer | VIA |
| Chipset Model | 970 |
| PCI Express Standard | PCI Express 2.0 |
| Number of PCI Slots | 2 |
| Total Number of Onboard USB Ports | 8 |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| RAID Levels | 0; 1; 5; 1+0 |
| Processor Supported | Opteron; FX; Athlon; Phenom; Sempron |
| BIOS Features | DMI 2.0 support, ACPI 2.0a support, SMBIOS 2.6 support, UEFI BIOS |
| Total Number of USB Ports | 10 |
| Number of PCI Express x1 Slots | 3 |
| Onboard Audio Header | Yes |
| width | 12 in |
| package contents | Ultra Durable 4 Classic GA-970A-D3P (rev. 1.0) Desktop Motherboard; Bundle Software |
| Number of Memory Slots | 4 |
| Sound Controller Model | VT2021 |
| depth | 8.8 in |
| Product Name | Ultra Durable 4 Classic GA-970A-D3P (rev. 1.0) Desktop Motherboard |
| Audio Codec | VIA VT2021 |
| HyperTransport Speed | 4.80 GT/s |
| manufacturer | GIGABYTE Technology, Inc |
| Number of S/PDIF Out Ports | 1 |
| Data Bus Transfer Rate | 4.8 GT/s |
| Audio Line Out | Yes |
| weight | 2.80 lb |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| controller type | Serial ATA/600 |
| Number of Onboard USB 2.0 Ports | 6 |
| Number of USB 3.0 Ports | 2 |
| Gigabit Ethernet | Yes |
| Network (RJ-45) | Yes |
| Microphone Port | Yes |
| Onboard Serial Header | Yes |
| Memory Standard | DDR3-2000/PC3-16000 (O.C.); DDR3-1866/PC3-15000; DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
| Number of Total Expansion Slots | 7 |
| Chipset Manufacturer | AMD |
| Memory Technology | DDR3 SDRAM |
| form factor | ATX |
| Number of Onboard USB 3.0 Ports | 2 |
| warranty length | 3-year limited |
| Onboard S/PDIF Header | Yes |
| model name | GA-970A-D3P |
| Show More ▾ |
